Conveyor inotakura rollervagadziri vakapindura nemagadzirirwo ane hunyanzvi anogadzirisa matambudziko ekushanda: kuvaka-up, kutevedza bhandi, kuramba kwemaitiro, uye kukanganisa kwezvakatipoteredza. Pakati peaya akasiyana akasiyana, spiral idler, parallel comb idler, inverted V type idler, uye ceramic conveyor idler imwe neimwe inoshandisa zvakasiyana. Aya maconveyor anotakura ma roller marudzi anogovana zvakajairika kugadzira zvinhu-yepamusoro-frequency welded pombi, high-density naironi zvisimbiso, mabearings, uye simbi yakatenderera-asi inosiyana mukumisikidzwa kwepasi uye optimization inoshanda.

Sei Conveyor Kutakura Roller Sarudzo Zvinebasa

A conveyo system inovimbika chete sekutakura kwayo roller chitima. Iyo conveyor inotakura roller inotsigira bhandi uye zvinhu zvinotakura apo ichichengetedza bhandi rakakodzera. Kana roller ikakundikana, mhedzisiro inodonha:

• Kukuvadzwa kwebhandi: Conveyor yakabatwa yakatakura roller inova nzvimbo yakamira inopwanya, kuveza groove muvharo yebhandi rinofamba.
• Kuwedzera kudhonza: Isingatenderere kana yakakwirira-resistance rollers inowedzera drive mota simba rekushandisa
• Kuparara kwezvinhu: Misaligned rollers inobvumira kukanganiswa kwebhandi, kurasa zvinhu kubva padivi rehurongwa.
• Structural stress: Kusaenzana roller kuramba kunogadzira bhandi tension misiyano inosimbisa splices uye dhiraivha.

Iyo yakasarudzika conveyor inotakura roller dhizaini inotsanangurwa pazasi imwe neimwe kero yekutadza modes yakajairika mune mamwe maindasitiri uye maapplication.

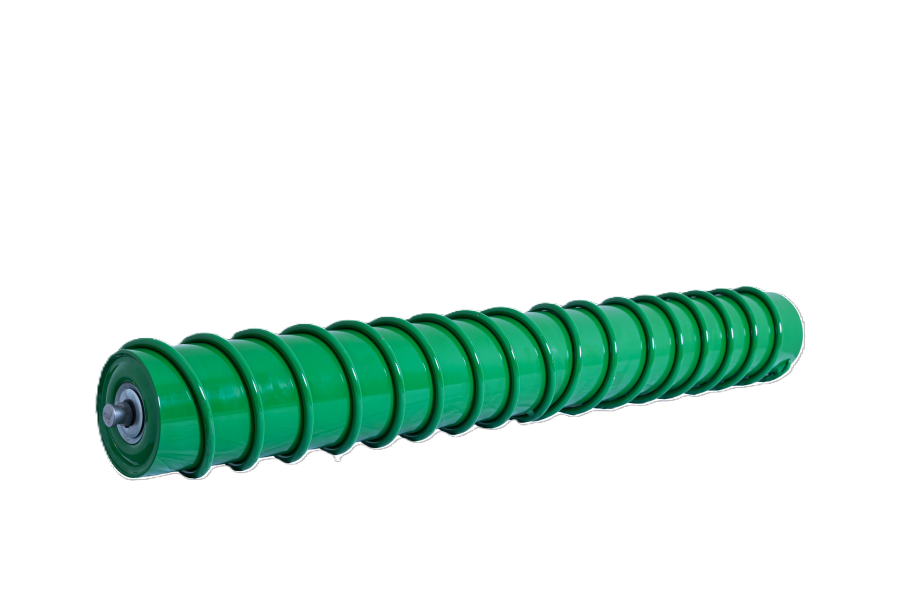

Spiral Idler: Kuzvichenesa Yekunamira Zvinhu

Iyo spiral idler ndeye conveyor inotakura roller musiyano wakagadzirirwa maapplication uko zvinhu zvinotakura zvinonamatira kune bhandi pamusoro. Yakagadzirwa kubva kune yakakwira-frequency welded pombi, yakakwira-density nylon zvisimbiso, zvitubu zvakatenderedza, mabhengi, uye simbi yakatenderera, iyo spiral idler inoratidzira helical surface kumisikidza.

Operating Principle

Sezvo bhandi richipfuura pamusoro pe spiral idler, iyo helical pateni inogadzira akasiyana mapoinzi ekuonana ayo anopwanya kusawirirana kwepamusoro pakati pebhandi uye zvakanamatira zvinhu. Madhipoziti anonamira—ivhu, jecha rakanyorova, simbi yakapwanyika nounyoro—inosunungurwa kubva pamusoro pebhandi pane kuungana pane conveyor inotakura roller.

Key Applications

• Aggregate uye jecha processing
• Clay uye mineral kubata
• Kugadzira marasha zvirimwa
• Chero bhandi rinotakura zvinhu zvinonamira kana kuti zvine hunyoro hwepamusoro

Iyo spiral dhizaini inoderedza kudiwa kweakasiyana bhandi scrapers uye vachenesi, izvo ivo pachavo zvinoda kugadziriswa uye kugadzirisa. Kune vashandisi vari kutsvaga conveyor inotakura roller ine passive yekuzvichenesa kugona, iyo spiral idler inopa mhinduro-yemahara mhinduro.

Parallel Comb Idler: Dzosera Bhandi Kucheneswa neKuzvichenesa Chimiro

Iyo parallel comb idler imwe mhando yeconveyor inotakura rollerzvakanyatsorongedzerwa kudzoka bhandi zvikumbiro. Yakagadzirwa nemapaipi akakwira-frequency welded, high-density naironi zvisimbiso, zvindori zverabha zvakaita muzinga, spacers, mabearings, uye simbi yakatenderera.

Dzorera Bhanhire Basa

Kudivi rekudzoka kweconveyor system-chikamu chebhandi rinofamba risina chinhu pasi pekumhanya-kutakura zvinhu zvinogona kuungana, kudonha munzira yekudzoka uye kugadzira matambudziko ekuchengetedza imba. Iyo parallel comb idler ndeye conveyor inotakura roller yakagadzirirwa kugadzirisa mabhandi ekudzoka uku ichipa inoshanda yekuchenesa chiito.

Kuzvichenesa Hunhu

Mhete dzerubha dzakaita muzinga dzinogadzira chiito chekuchenesa chemagetsi panzvimbo yebhandi. Sezvo bhandi rekudzoka richipfuura pamusoro peiyi conveyor inotakura roller, zvinhu zvakanamatira zvinobviswa uye zvinowira kure pane kufamba nebhanhire kune pulley yemuswe. Hunhu hwakakosha hwekuita hunosanganisira:

• Ruzha rwakaderera: Dhizaini yeComb inoderedza ruzha rwekubata kana ichienzaniswa neakasimba-pamusoro-soro rollers
• Gobvu chubhu madziro: Yakanatsiridza kusimba kwemaitiro ekudzoka-padivi sevhisi
• Flexible rotation: Low rolling resistance inoderedza kurasikirwa kwemagetsi
• Kuramba kwakaderera: Yakaderedzwa kutakura kudhonza kana ichienzaniswa neyakajairwa kudzoka idlers

Kune zvivakwa zviri kunetsekana nekutakura zvinhu munzira dzekudzoka, iyo inofananidzira comb idler inopa inongoita yekuchenesa mhinduro isingade ekunze simba kana masystem ekudzora.

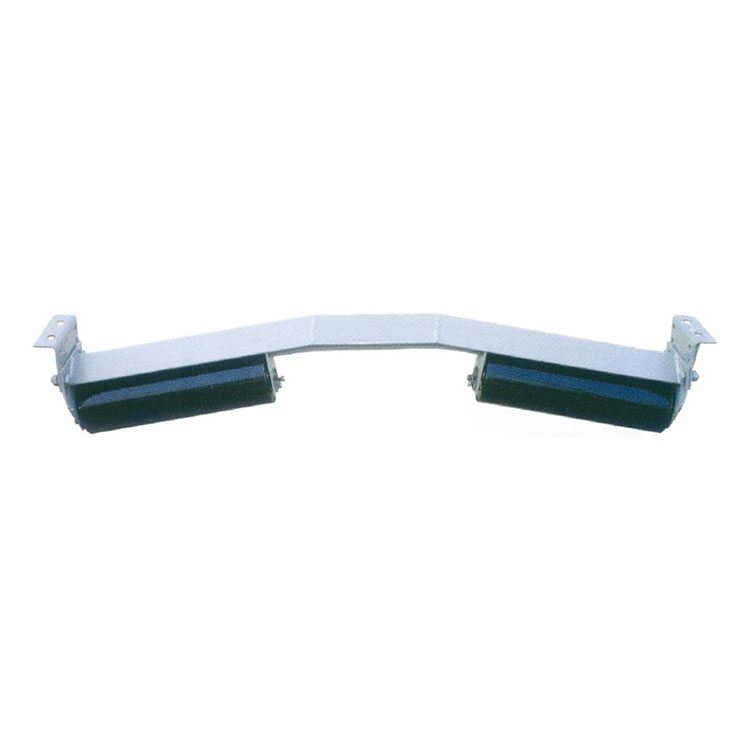

Inverted V Type Idler: Belt Kudzvinyirira uye Kutevera

Iyo inverted V type idler idhiraivha inotakura roller inonyanya kushandiswa kugadzirisa kona yekuchinja kwebhandi rekudzoka mumabhandi ekutakura masisitimu. Basa rayo guru nderokudzvinyirira bhandi-kudzivirira bhandi kuti risabhururuke kumusoro uye kukwenya zvimiro zvemuviri.

Bhandi Kudzvinyirira Basa

Pamafambisi marefu, kunyanya ayo ane zvikamu zvakarerekera kana kumhanya kwebhandi rakakwirira, bhandi rekudzoka rinogona kusimudza kubva kune asina basa ma rolls nekuda kwebhandi tension dynamics kana kupinza mhepo. Bhandi rinobhururuka richienda kumusoro rinobata simbi yezvimiro- matanda emuchinjikwa, tambo, nzira dzekufamba-zvichikonzera kuputika kwekuvhara uye kukuvara kwebhandi.

Iyo inverted V gadziriso yeiyi conveyor inotakura roller inogadzira mbiri inobata bhandi uye inoibata pasi, ichichengetedza kuwirirana kunoenderana uku ichibvumira kutenderera kwemahara. Kusiyana neflat kudzoka idlers iyo inobvumira yakamira bhandi kufamba, iyo inverted V chimiro chinomanikidza bhandi chinzvimbo.

Kuisa chisimbiso uye Kuchengetedzwa Kwezvakatipoteredza

Migumo miviri yeiyi conveyor inotakura roller inosanganisa labyrinth seal zvimiro zvakasanganiswa nekaviri-mativi akavharidzirwa mabhengi. Iyi dual-barrier system inopa:

• Dziviriro yeguruva: Zvisimbiso zveLabyrinth zvinodzivirira kupinda mukati
• Kuramba kwemvura: Zvisimbiso zvine mativi maviri hazvibatanidzi hunyoro munzvimbo dzakanyorova
• Hwakawedzerwa hupenyu hwekubereka: Kusvibiswa kusabatanidzwa kunopindirana zvakananga nekutakura hupenyu hwesevhisi

Kune conveyor inotakura zvigadzirwa zvema roller zvinoshanda munzvimbo dzine guruva kana mvura - migodhi, makwari, ekunze ekutakura madhizaini - yekuisa chisimbiso kazhinji musiyano uripo pakati pemwedzi mitatu nemakore matatu ehupenyu hwesevhisi.

Ceramic Conveyor Idler: Abrasion uye Corrosion Resistance

Ceramic conveyor idler iconveyor inotakura roller yakavakwa nealuminium oxide (alumina) pamusoro kwete simbi kana rabha. Uku kusarudzwa kwezvinhu kunopa chaiwo mabhenefiti ehasha maapplication.

Material Properties

Aluminium oxide (Al₂O₃) ceramic inopa:

• Kuomarara kwepamusoro: Kunodarika makumi masere pachiyero cheRockwell HRA, chakaoma zvakanyanya kupfuura simbi
• Acid resistance: Kusabatwa neacidic solutions inodya ma roller esimbi
• Alkali kuramba: Kemikari yakagadzikana munzvimbo dzakakosha
• Abrasion resistance: Inopona nekusangana nezvinhu zvakapinza, zvakaomarara zvinogoka simbi kana rabha

Yakakodzera Applications

Iyo ceramic conveyor inotakura roller inoshandiswa zvakanyanya mumigodhi, jecha nematombo, simbi yesimbi, indasitiri yemakemikari, uye mamwe maindasitiri uko:

• Zvinhu zvakaomesesa zvakanyanya (simbi, taconite, granite) zvinopfeka simbi idlers nekukurumidza
• Nzvimbo dzinoparadza (fertilizer zvirimwa, makemikari kubata) kurwisa nzvimbo dzesimbi
• Kumhanya kwebhandi repamusoro kunomhanyisa kupfeka pane yakajairwa conveyor inotakura roller nzvimbo

Trade-offs

Ceramic idlers kazhinji inodhura kupfuura simbi idlers uye inorema, inoda kutariswa kwebhandi dhiraivha simba uye kutsigirwa kwechimiro. Nekudaro, kune maoparesheni ari kusangana nekusashanda shanduko mwedzi mishoma yega nekuda kweabrasion, iyo yakawedzera sevhisi hupenyu hweceramic kazhinji inoruramisa iyo premium. Iyo ceramic conveyor inotakura roller inopa nguva refu pakati pekutsiva, kuderedza mutengo wevashandi uye kuderera kwekugadzirisa.

Common Manufacturing Quality Indicators

Pakati pese maconveyor anotakura ma roller marudzi-spiral, comb, inverted V, ceramic-mamwe maitiro ekugadzira anoratidza kunaka zvisinei nekumisikidzwa.

High-Frequency Welded Pipe

Iyo chubhu yemuviri weconveyor inotakura roller inofanirwa kuve yakatwasuka, yakatenderera, uye inogara yakakora-madziro. High-frequency welding inogadzira seam ine shoma yemukati flash uye inowirirana metallurgy. Machubhu asina kunaka anokonzera roller eccentricity, kugadzira vibration uye bhandi flutter.

High-Density Nylon Seals

Zvisimbiso hazvibatanidzi kusvibiswa. Low-density zvisimbiso zvinotora hunyoro, kuzvimba, uye kurasikirwa nekubudirira. Naironi yakakwira-density inochengetedza kugadzikana, inochengeta mafuta mukati, uye inochengetedza hutachiona kunze. Iyo conveyor inotakura roller seal inowanzova chikamu chinotaridza hupenyu hwebasa.

Bearings

Maviri-mativi akavharidzirwa mabearings (anonziwo sealed-for-life bearings) anofanozorwa uye haadi kuchengetedzwa. Iyo conveyor inotakura roller inotakura sarudzo inofanirwa kuenderana nemutoro uye kumhanya zvinodiwa; undersized bearings anotadza nguva isati yakwana, ukuwo oversized bearings achiwedzera mutengo zvisina basa.

Round Steel

Shaft inogumira uye inokwirisa inosungirirwa nzvimbo inoda kutenderera kwakanaka uye kupera kwepamusoro. Mashaft asina kujeka anogadzira kusarongeka, kurodha mabhengi zvisina kuenzana uye zvichikonzera kutadza kwekutanga kwemutakuri akatakura roller musangano.
